2007-2016 GM1500 (CAST) 5/7 LOWERING KIT EXT/CREW CAB W/ WELD ON C-NOTCH 2WD/4WD
$1,000.00 USD
Skip to product information
IHC Suspension 5/7 Lowering Kit Compatible with 2007-2016 Chevy Silverado 1500 and GMC Sierra 1500 Extended Cab and Crew Cab 2WD and 4WD, Factory Cast Steel Control Arms, Weld-On C-Notch Included
Lower your 2007-2016 Chevy Silverado 1500 or GMC Sierra 1500 Extended Cab or Crew Cab with this IHC Suspension 5/7 lowering kit. This kit is designed to provide an approximate 5-inch front drop and 7-inch rear drop for compatible GM 1500 trucks equipped with factory cast steel control arms.

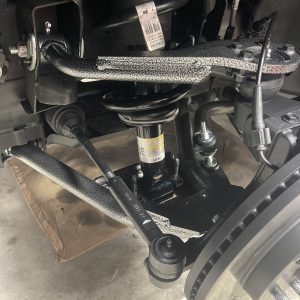

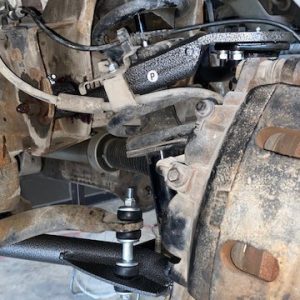

The front suspension is lowered using IHC upper and lower drop control arms. The lower control arms provide the front drop, while the upper control arms help with camber adjustment and alignment correction after lowering. Front spacers are included to allow adjustment from an approximate 5-inch front drop to an approximate 4-inch front drop. Shorter sway bar links are also included to help maintain proper suspension geometry.

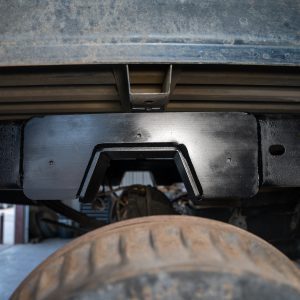

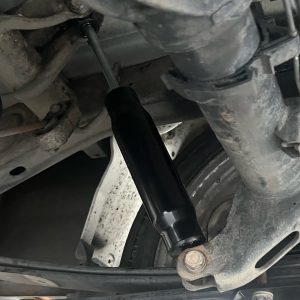

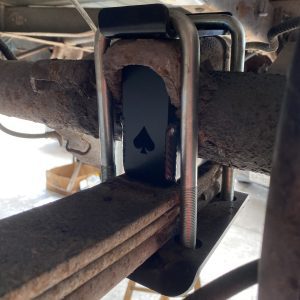

The rear suspension is lowered using an IHC flip kit with built-in pinion angle correction, nitrogen-charged drop shocks, 2-inch lowering shackles, and a weld-on under-bed C-notch.

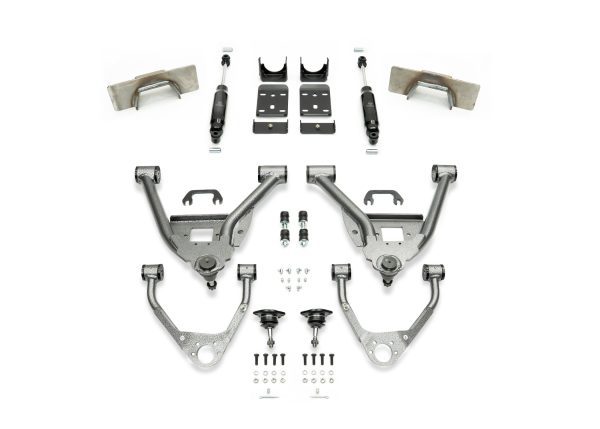

Package Includes:
Front:
Pair of upper drop control arms
Pair of lower drop control arms
New ball joints
Delrin control arm bushings
Ball joint nuts and cotter pins
Front adjustment spacers
Shorter sway bar links
Rear:
Flip kit
2-inch lowering shackles
Nitrogen-charged drop shocks
Weld-on under-bed C-notch
Fitment:
Compatible with 2007-2016 Chevy Silverado 1500 Extended Cab and Crew Cab 2WD and 4WD
Compatible with 2007-2016 GMC Sierra 1500 Extended Cab and Crew Cab 2WD and 4WD
Designed for trucks equipped with factory cast steel control arms
Note:
Verify year, cab style, drivetrain, and factory control arm type before ordering. Welding is required for installation of the included C-notch.
